Stainless Steel Nut Bolts
Synergy Fasteners is a leading manufacturer, dealer, and supplier of high-quality stainless steel eye bolts in India. Known for precision engineering and exceptional durability, our eye bolts are manufactured using premium-grade stainless steel to ensure maximum strength and corrosion resistance. We offer a wide range of sizes and specifications to meet industrial requirements across sectors such as construction, marine, automotive, and heavy machinery.

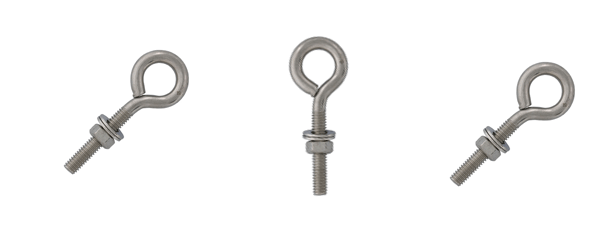

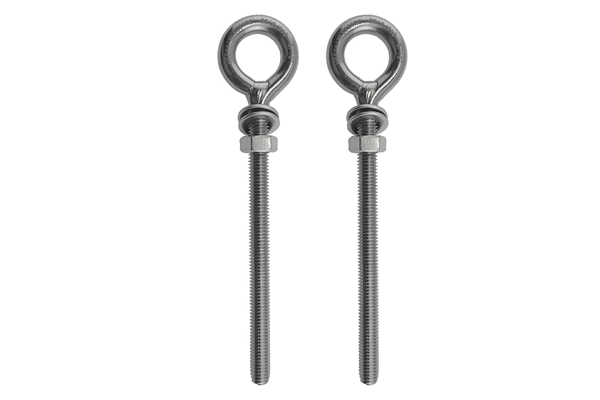

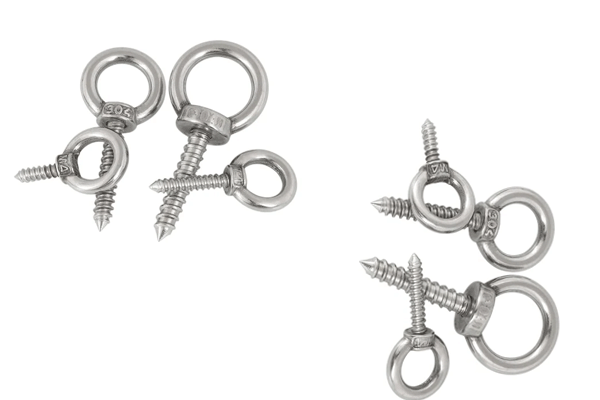

A stainless steel eye bolt is a type of fastener that features a threaded shank with a loop or "eye" at one end. It is commonly used to attach cables, ropes, chains, or hooks for lifting, securing, or supporting loads.
Made from stainless steel, these eye bolts are highly resistant to rust and corrosion, making them ideal for use in harsh environments such as marine, chemical, and outdoor applications. They are available in various types, including:
| Parameter | Specification / Range |
|---|---|
| Material Grades | SS 304, SS 316, SS 316L, SS 201, SS 303, SS 410, SS 904L, 18-8 Stainless Steel, A2-70, A4-70, A4-80 |
| Standards | DIN 580, DIN 444, ISO 3266, ASTM A193, ASME B18.15, IS 4190, JIS, EN, BS, ANSI |
| Thread Size (Metric) | M2 – M100 (common: M6, M8, M10, M12, M16, M20, M24, M30, M36, M48, M56, M64, M72, M80, M100) |
| Thread Size (Inch) | 1/4" to 2" and above |
| Length | 6 mm – 1200 mm |
| Head Types | Hex, Square, Round, Hex Flange, Flat, T-head, Triangular |
| Neck Types | Hex, Square, Triangular, Oval, Knurled |
| Drive Types | Phillips, Slotted, Hex Socket, Torx, Square Slot |
| Thread Types | Metric Coarse (ISO 262), UNC, UNF, UNEF, UNJC, UNJF, UNK, UNR |
| Finish | Passivation, Plain, Per ASTM A380/A380M |
| Load Capacity (WLL, kg) | Varies by size (see sample below) |
| Applications | Lifting, rigging, anchoring, wind towers, construction, marine, automotive, electronic, etc. |
Office Address:
Shop No. 3, Ground Floor, 53/57, Bhandari Street, 1st Kumbharwada, Mumbai MAHARASHTRA , INDIA -400004.
Contact Number
| Thread Size | d1 (mm) | Axial Load Capacity (kg) |
|---|---|---|
| M6 | 6 | 75 |
| M8 | 8 | 140 |
| M10 | 10 | 230 |
| M12 | 12 | 340 |
| M16 | 16 | 700 |
| M20 | 20 | 1200 |
| M24 | 24 | 1800 |
| M30 | 30 | 3200 |
| M36 | 36 | 4600 |
| M42 | 42 | 6500 |
| M48 | 48 | 8500 |
| M56 | 56 | 12000 |
| M64 | 64 | 16000 |
| M72 | 72 | 20000 |
| M80 | 80 | 25000 |
| M100 | 100 | 32000 |
Note: The actual load capacity depends on installation, direction of pull, and application. Always refer to manufacturer or standard for safe working loads.
Synergy Fasteners is a leading manufacturer and trusted dealer of Stainless Steel (SS) Eye Bolts in India, offering premium quality products at the best price. We provide a wide range of SS Eye Bolts in various sizes, thread types, and finishes to suit the needs of industries such as construction, marine, automotive, and heavy engineering. Manufactured using high-grade SS 304, SS 316, and SS 316L materials, our eye bolts deliver excellent strength, corrosion resistance, and durability.
